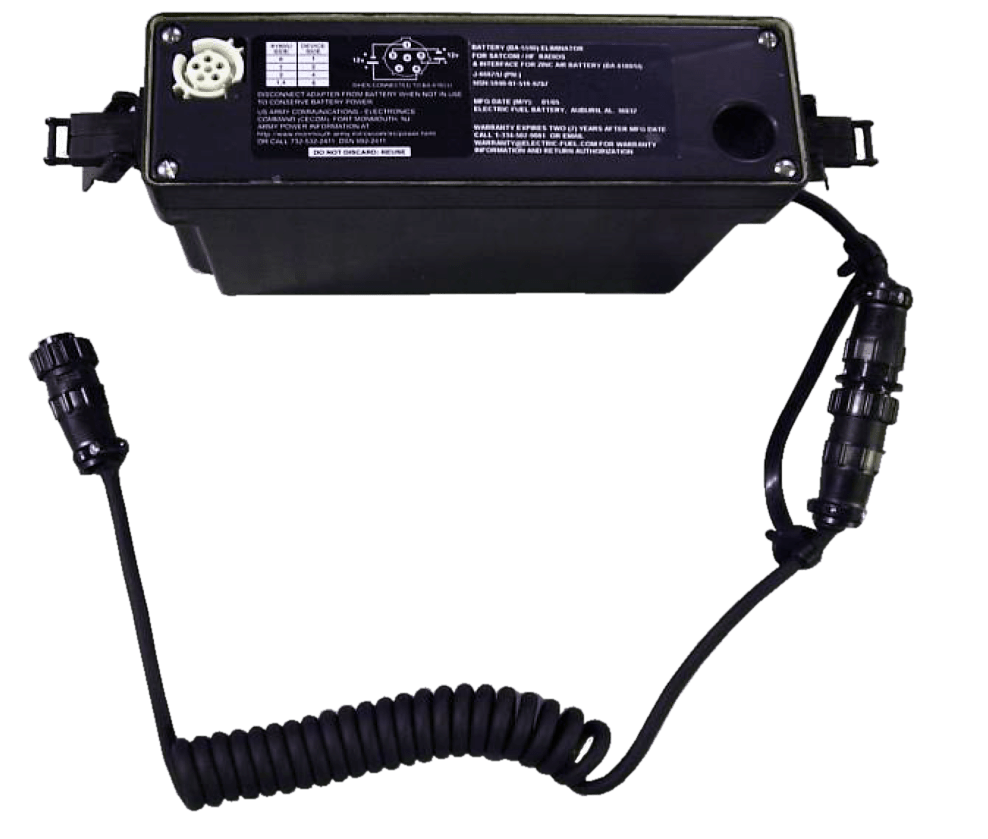

AN/PRC-117/150/PSC-5 SAT-COM/HF Adapter J-6687/U

The SATCOM/HF Adapter allows the operator to replace the existing battery on an AN/PRC-117/150/PSC-5. The SATCOM/HF Adapter used in conjunction with the BA-8180-U will provide approximately 4-6 days of continuous use.



Downloads
pdf-iconSpec Sheet

pdf-iconPrice Sheet

Compatible with the following batteries & Power Sources:

BA-8180/U, ZA-8150, BA-5590/U, BA-5390/U, BB-2590/U, BB-390/U, BB-590/U

EFB Part Number: 501267

DC Input 24 VDC Nominal
DC Output 24 VDC Nominal
Operational Temperature –20°C to +60°C (–4°F to +140°F)
Dimensions (WxDxL) 9.2” x 5.2” x 2.9”
Replacement Lead Acid Batteries NSN: 6140-01-525-2053 (BATT SEALED LEAD ACID 12V 1.3AH- P/N: LC-R121R3P)
Weight 4.1 lb
Environmental -Humidity 95%

-Altitude 50,000 ft

-IP67
