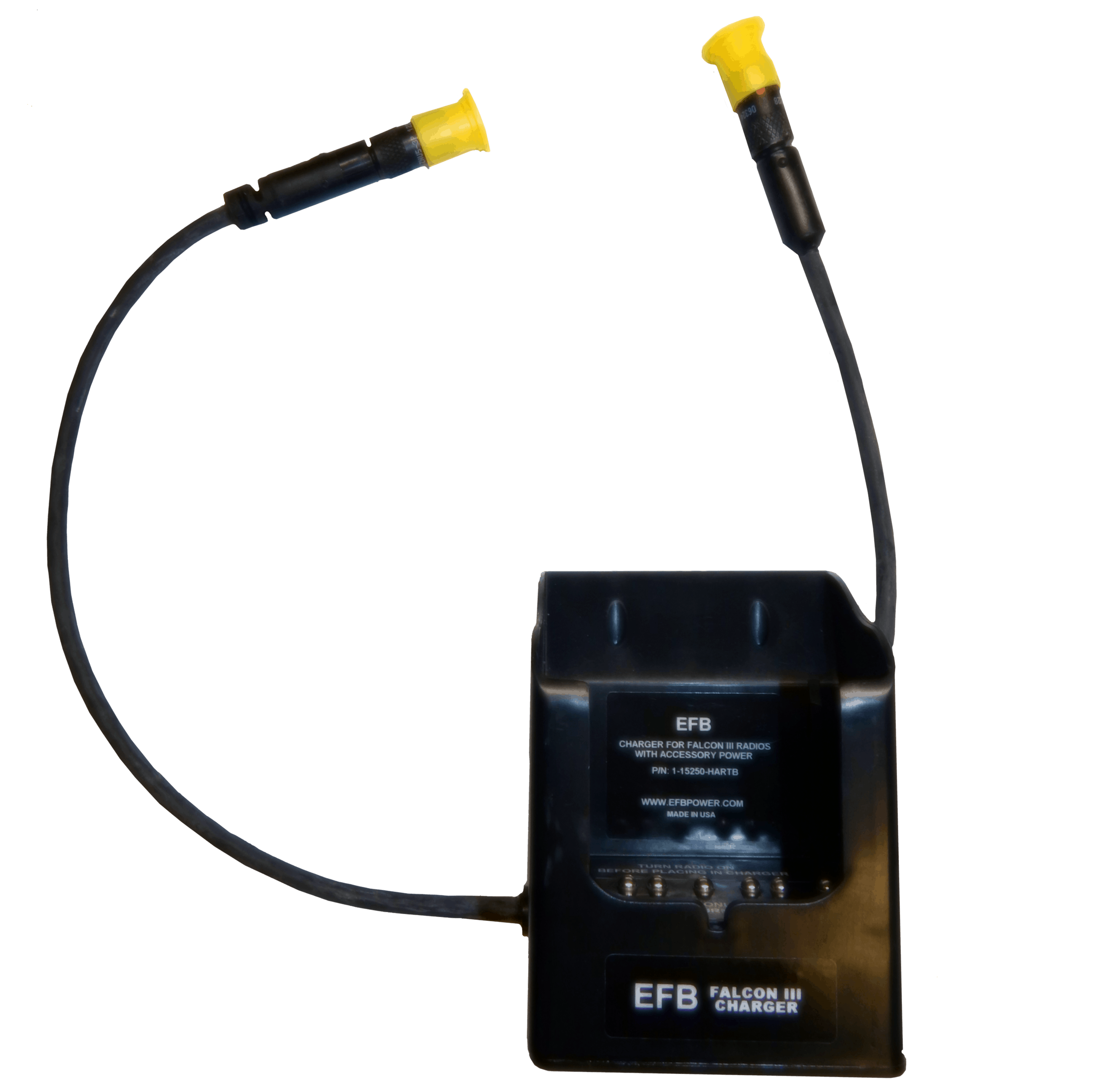

Falcon III AN/PRC 152 Charger with Auxiliary Output Cable

falcon 152 with aux

The Falcon III AN/PRC 152 with Auxiliary Output Cable Charger allows the user to maintain up to 80% charge on an Harris Falcon III Radio charge a EUD and provides an output to exchange data between an EUD and Radio in a vest or personal equipment mounted package. The charger may be used as part of the SWIPES™ system or separately powered using a SWIPES™ compatible power cable. The Auxiliary Output Cable shall be connected to a Falcon III AN/PRC 152 Sidehat device (P/N 1-15259-00) ONLY.

Downloads
pdf-iconSpec Sheet

pdf-iconSpec Sheet

Compatible with the following batteries & Power Source
BA-8180/U, BA-8140/U, ZA-8140S, ZA-8150, IPS HUB, BA-5590/U, BA-5390/U, BA-2590/U, BB-390/U, BB-590/U

EFB P/N: 1-15250-XSH

NSN: 5895-01-623-6381

UEC P/N: 1045A01-002

1-15525-00, SWIPES CWB Battery Cable VERSION II



DC Input 12 VDC Nominal
DC Output Charge 12.6 VDC Maximum
DC Output Side Cable 5V DC Nominal
1 A Maximum
Operational Temperature –20°C to +60°C (–4°F to +140°F)
Storage Temperature –40°C to +100°C (–40°F to +212°F)
Dimensions (WxDxL) 7.7 x 3.51 x 9.6 cm (3.0 x 1.38 x 3.75 inches)
Weight 171 g / 0.377 lb
Environmental -Humidity 95%
-Altitude 50,000 ft
***EUD Cable sold seperately***
