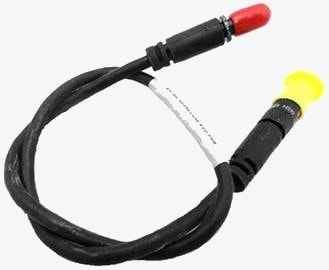

SWIPES™ EXTENSION CABLE MG/FG 18″

SWIPES™ EXTENSION CABLE MG/FG 18"

The Soldier Worn Integrated Power Equipment System (SWIPES™) Extension allows the user to extend the cable length from an application with a Glenair Connector to the Integrated Power Source (IPS) with a Glenair Connector.

Downloads
pdf-iconSpec Sheet

Compatible with the following:
Motorola Charger, MBITR Charger, DAGR Adapter Cable

UEC P/N: 0996H02-001

NSN: 6150-01-618-8254

EFB P/N: 1-15400-18

system ii 361-15525-00, SWIPES CWB Battery Cable VERSION II

DC Input 12 VDC Nominal
DC Output 12 VDC Nominal
Operational Temperature –20°C to +60°C (–4°F to +140°F)
Storage Temperature –40°C to +100°C (–40°F to +212°F)
Length 46 cm / 18 inches
Weight 56 g  / 0.12 oz
Environmental -Humidity 95%
-Altitude 50,000 ft
