Category Archives: SWIPES Components

Falcon III AN/PRC 152 Charger Dual Input Dual Output Side Connector (sidePAN)

Posted on March 2, 2017

falcon iii an prc 152 charger dual inputThe Falcon III AN/PRC 152 Charger side connector (sidePAN) provides an output to exchange data between an EUD and Radio in a vest or personal equipment mounted package. The Sidehat connected to charger may be used as part of the SWIPES™ system or separately powered using a SWIPES™ compatible power cable. The Sidehat connector provides 5V, up to 1A, of power for USB or other radio accessories. There are no LED indicators for the operation of this power.

Downloads
Spec Sheet

Contact For Pricing

Compatible with the following batteries & Power Source

BA-8180/U, BA-8140/U, BA-5590/U, BA-5390/U, BA-2590/U, BB-390/U, BB-590/U, Li-145, CWB-85, CWB-150

EFB P/N: 1-15259-00

DC Input 5 VDC Nominal
Output 1 Amp 5 VDC Maximum
Operational Temperature –20°C to +60°C (–4°F to +140°F)
Storage Temperature –40°C to +100°C (–40°F to +212°F)
Dimensions (WxDxL) 8.42 X 2.85 X 2.64 Centimeters (3.315 x 1.12 x1.040 Inches)
Weight 64.86 g / 0.143 lb
Environmental -Humidity 95%
-Altitude 50,000 ft



SWIPES™ IOTV Retro Cummerbund Kit Gen II

Posted on January 20, 2017

swipes iotv retro cummberbund kit gen iiThe Improved Outer Tactical Vest (IOTV) Retro Cummerbund kit, Gen II allows the soldier to replace the standard cummerbunds on their current IOTV. This kit was designed to work with the SWIPES™ system in which the built-in cable management allows the operator to route the cabling inside the vest. The kit retains the ability to hold the operator’s armor side plates and provides MOLLE on the outside for easy mounting capability. All connections to the IOTV remain the same, so there is no interruption to the lanyard system for quickly exiting the vest. The back panel of the kit serves as a mounting apparatus for the SWIPES™ Power Hub. The retaining strap securely holds the SWIPES™ Power Hub in place which allows the SWIPES™ system connectors to pull apart when the operator has to utilize the lanyard system.

Downloads
Spec Sheet

Contact For Pricing

P/N: 54989-XXX

Dimensions (WxDxL) 153 x 270 x 1.2 cm / 60.0 x 10.6 x 0.5 inches
Weight 510 g / 1.12 lbs

Colors
DAGR POUCH Colors

SWIPES™ Extension Cable MG/FG 36″

Posted on January 19, 2017

SWIPES™ Extension Cable MGFG 18The Soldier Worn Integrated Power Equipment System (SWIPES™) Extension allows the user to extend the cable length from an application with a Glenair Connector to the Integrated Power Source (IPS) with a Glenair Connector.

Downloads
Spec Sheet

Contact For Pricing

UEC P/N: 0996H02-36

EFB: 1-15400-36

NSN: 6150-01-618-8254

system ii 361-15525-00, SWIPES CWB Battery Cable VERSION II

DC Input 12 VDC Nominal
DC Output 12 VDC Nominal
Operational Temperature –20°C to +60°C (–4°F to +140°F)
Storage Temperature –40°C to +100°C (–40°F to +212°F)
Length 96 cm / 36 inches
Weight 56 g  / 0.12 lb
Environmental -Humidity 95%
-Altitude 50,000 ft

Rifleman AN/PRC 154 Charger Pouch

Posted on July 13, 2015

rifleman anprc 154 charger pouchThe Rifleman Charger Pouch is designed to stow, protect and camoflage the  Rifleman AN/PRC Charger and Rifleman Radio.

Downloads
Spec Sheet

Contact For Pricing

Compatible with the following:
EFB Rifleman Charger with Rifleman Radio (AN/PRC-154 Multiband Inter/Intra Team Radio )

EFB & UEC P/N: 1‐15151‐XXX

NSN: 5975-01-619-8364

Dimensions (WxDxL) 170.2 x 92.7 x 59.7 mm (6.7 x 3.7 x 2.4 Inches)
Weight .159 kg (0.35 lb)

Colors
Colors

MBITR CHARGER POUCH

Posted on

MBITR Charger Pouch is designed to stow, protect, and camoflage the MBITR Charger and Thales MBITR Radio. It can easily be attached to any modular lightweight load carrying equipment (MOLLE) used throughout the world.

Downloads
Spec Sheet

Contact For Pricing

Compatible with the following:
EFB MBITR Charger with Thales MBITR Radio (AN/PRC-148 Multiband Inter/Intra Team Radio )

P/N: 1-15201-XXX

DSC03230

Dimensions (WxDxL) 170.2 x 92.7 x 59.7 mm (6.7 x 3.7 x 2.4 Inches)
Weight .159 kg (0.35 lb)

Colors
Colors

FALCON III CHARGER POUCH

Posted on

EFB’s FALCON III Charger Pouch is designed to stow, protect and camoflage the EFB FALCON III Charger and Thales MBITR Radio.

Downloads
Spec Sheet

Contact For Pricing

Compatible with the following:
EFB FALCON III Charger with Falcon Harris Radio (AN/PRC-152 Multiband Inter/Intra Team Radio )

EFB/UEC P/N: 1‐15251‐XXX

Dimensions (WxDxL) 170.2 x 92.7 x 59.7 mm (6.7 x 3.7 x 2.4 Inches)
Weight .159 kg (0.35 lb)

Colors
Colors

MOTOROLA CHARGER POUCH – XTS 5000

Posted on

EFB’s Motorola Charger Pouch is designed to stow, protect and camouflage the EFB Motorola Charger and Motorola XTS 5000 Radio.

Downloads
Spec Sheet

Contact For Pricing

Compatible with the following:
EFB Motorola Charger with Motorola XTS 5000 Radio

EFB P/N: 1-15102-XXX

Dimensions (WxDxL) 203.2 x 101.6 x 76.2 mm (8.0 x 4.0 x 3.0 Inches)
Weight .133 kg (0.29 lb)

Colors
Colors

MOTOROLA CHARGER POUCH – XTS 2500

Posted on

EFB’s Motorola Charger Pouch is designed to stow, protect and camoflage the EFB Motorola Charger and Motorola XTS 5000 Radio.

Downloads
Spec Sheet

Contact For Pricing

Compatible with the following:
EFB Motorola Charger with Motorola XTS 5000 Radio

EFB P/N: 1-15101-XXX

Dimensions (WxDxL) 203.2 x 101.6 x 76.2 mm (8.0 x 4.0 x 3.0 Inches)
Weight .133 kg / 0.29 lb

Colors
Colors

DAGR POUCH

Posted on

The Soldier Worn Integrated Power Equipment System (SWIPES™), Defense Advanced GPS Reciever (DAGR) Pouch is designed to stow, protect, and camouflage the DAGR Unit while attached to any modular lightweight load-carrying equipment (MOLLE) used throughout the world.

Downloads
Spec Sheet

Contact For Pricing

Compatible with the following:
Rockwell Collins DAGR (AN/PSN-13 Defense Advanced GPS Receiver)

P/N: 1-15301-XXX



Dimensions (WxDxL) 182.9 x 101.6 x 64.8 mm / 7.2 x 4.0 x 2.6 inches
Weight 149 g / 0.33 lbs

Colors
DAGR POUCH Colors

RIFLEMAN AN/PRC 154 Charger w/ Auxiliary Output cable and with Rifleman Dual Input Dual Output Side Connector (sidePAN)

Posted on

rifleman anprc 154 charger with auxiliary output cableThe Rifleman AN/PRC 154 Charger with Auxiliary Output Cable and with Dual Input Dual Output side connector (sidePAN) allows the user to maintain up to 80% charge on an Thales Rifleman Radio charge a EUD and provides an output to exchange data between ab EUD and Radio in a vest or personal equipment mounted package. The charger may be used as part of the SWIPES™ unit or separately powered using the SWIPES™ Power Cable, AM/GF.

Downloads
Spec Sheet

Contact For Pricing

Compatible with the following batteries & Power Source
BA-8180/U, BA-8140/U, ZA-8140S, ZA-8150, IPS HUB, BA-5590/U, BA-5390/U, BA-2590/U, BB-390/U, BB-590/U

UEC P/N: 0998A01-002

EFB P/N: 1-15150-SH

NSN: 6130-01-618-5775

DC Input 12 VDC Nominal
Output 1 Amp 12.6 VDC Maximum
Operational Temperature –20°C to +60°C (–4°F to +140°F)
Storage Temperature –40°C to +100°C (–40°F to +212°F)
Dimensions (WxDxL) 25 x 11.5 x 31.4 cm (3.03 x 2.49 x 3.84 inches)
Weight 227 g / 0.495 lb
Environmental -Humidity 95%
-Altitude 50,000 ft

SWIPES™ Battery CABLE, AM/GF

Posted on

swipes battery cable2The Soldier Worn Integrated Power Equipment System (SWIPES™) Battery Cable allows the user to connect an Zinc Air Battery to the SWIPES™ HUB.

Downloads
Spec Sheet

Contact For Pricing

Compatible with the following batteries
BA-8180/U, BA-8140/U, ZA-8140S, ZA-8150

EFB P/N: 1-15500-00

DC Input 12 VDC Nominal
DC Output 12 VDC Nominal
Operational Temperature –20°C to +60°C (–4°F to +140°F)
Storage Temperature –40°C to +100°C (–40°F to +212°F)
Length 69 cm (27.25 inches)
Weight 58 g / 0.13 lb
Environmental -Humidity 95%
-Altitude 50,000 ft

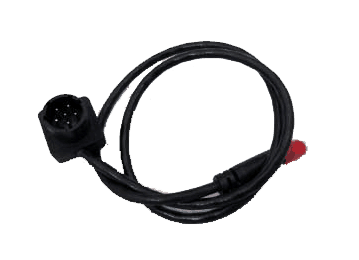

SWIPES™ XX90 BATTERY

Posted on July 11, 2015

swipes xx90 battery cableEFB’s XX90 Battery Cable allows the user to connect a XX90 Battery to the SWIPES™ HUB.

Downloads
Spec Sheet

Contact For Pricing

Compatible with the following batteries:
BA-2590/U, BA-5590/U

EFB P/N: 1-15450-00

UEC P/N: 0996H04-001

NSN: 6150-01-618-5998

DC Input 12 VDC Nominal
DC Output 12 VDC Nominal
Operational Temperature –20°C to +60°C (–4°F to +140°F)
Storage Temperature –40°C to +100°C (–40°F to +212°F)
Length 46 cm / 18 inches
Weight 43 g / 0.095 lb
Environmental -Humidity 95%
-Altitude 50,000 ft

SWIPES™ Battery Cable 6-Pin to 3-Pin

Posted on

DSCN34572

Soldier Wearable Integrated Power Equipment System (SWIPES™) Battery Cable 6-Pin to 3-Pin allows the user to connect a Li-145 Battery or compatible to the SWIPES™ Power Hub.

Downloads
Spec Sheet

Contact For Pricing

Compatible with the following batteries:
Li-145

UEC P/N: 0996H01-001

NSN: 6150-01-618-5983

EFB P/N: 1-15525-00

1-15525-00, SWIPES CWB Battery Cable VERSION II WHITEpub-batcable-li145

DC Input 12 VDC Nominal
DC Output 12 VDC Nominal
Operational Temperature –20°C to +60°C (–4°F to +140°F)
Storage Temperature –40°C to +100°C (–40°F to +212°F)
Length 48.3 cm / 19 inches
Weight 28 g / 1 oz / 0.062 lb
Environmental -Humidity 95%
-Altitude 50,000 ft

SWIPES™ EXTENSION CABLE MG/FG 18″

Posted on

SWIPES™ EXTENSION CABLE MG/FG 18"

The Soldier Worn Integrated Power Equipment System (SWIPES™) Extension allows the user to extend the cable length from an application with a Glenair Connector to the Integrated Power Source (IPS) with a Glenair Connector.

Downloads
Spec Sheet

Contact For Pricing

Compatible with the following:
Motorola Charger, MBITR Charger, DAGR Adapter Cable

UEC P/N: 0996H02-001

NSN: 6150-01-618-8254

EFB P/N: 1-15400-18

system ii 361-15525-00, SWIPES CWB Battery Cable VERSION II

DC Input 12 VDC Nominal
DC Output 12 VDC Nominal
Operational Temperature –20°C to +60°C (–4°F to +140°F)
Storage Temperature –40°C to +100°C (–40°F to +212°F)
Length 46 cm / 18 inches
Weight 56 g  / 0.12 oz
Environmental -Humidity 95%
-Altitude 50,000 ft

SWIPES™ DAGR CABLE

Posted on

The Soldier Worn Integrated Power Equipment System (SWIPES™), Defense Advanced GPS Reciever (DAGR) Adapter Cable allows the user to connect a DAGR to the SWIPES™ Hub or a variety of batteries.

Downloads
Spec Sheet

Contact For Pricing

Compatible with the following batteries & Power Source:BA-8180/U, BA-8140/U, BA 5590/U, BA-5390/U, BA 2590/U, BB-390/U, BB-590/U, CWB-85, CWB-150, SWIPES™ Hub

UEC P/N: 0996H03-001

NSN: 6150-01-618-8242

EFB P/N: 1-15300-00

system ii 36 dagr1-15525-00, SWIPES CWB Battery Cable VERSION II



DC Input 12 VDC Nominal
DC Output 12 VDC Nominal
Operational Temperature –20°C to +60°C (–4°F to +140°F)
Storage Temperature –40°C to +100°C (–40°F to +212°F)
Length 113 cm / 44.5 inches
Weight 75 g / 0.164 lbs
Environmental -Humidity 95%
-Altitude 50,000 ft

Rifleman AN/PRC 154 Charger with Auxiliary Output Cable

Posted on

rifleman with auxThe Rifleman AN/PRC 154 Charger with Auxiliary Output Cable allows the user to maintain up to 80% charge on an Thales Rifleman Radio charge a EUD and provides an output to exchange data between ab EUD and Radio in a vest or personal equipment mounted package. The charger may be used as part of the Soldier Worn Integrated Power Equipment System (SWIPES™) system or separately powered using a SWIPES™ compatible power cable. The Auxiliary Output Cable shall be connected to a Rifleman AN/PRC 154 Charger device.

Downloads
Spec Sheet

Contact For Pricing

Compatible with the following batteries & Power Source

BA-8180/U, BA-8140/U, IPS HUB, BA-5590/U, BA-5390/, BA-2590/U, BB-390/U, BB 590/U

 UEC: 0998A01-002

NSN: 6130-01-618-5787

EFB: 1-15150-XSH

DC Input 12 VDC Nominal
Output 1 Amp 12.6 VDC Maximum
Operational Temperature –20°C to +60°C (–4°F to +140°F)
Storage Temperature –40°C to +100°C (–40°F to +212°F)
Dimensions (WxDxL) 7.7 x 3.5 x 9.6 cm
Weight 171 g
Environmental -Humidity 95%
-Altitude 50,000 ft





Rifleman AN/PRC 154 Charger Dual Input and Dual Output Side Connector (sidePAN)

Posted on

Rifleman ANPRC 154 Charger dual input and dual output side connector

The Rifleman AN/PRC 154 Charger with side connector provides an output to exchange data between an EUD and Radio in a vest or personal equipment mounted package. The Sidehat connected to charger may be used as part of the Soldier Worn Integrated Power Equipment System (SWIPES™) unit or separately powered using a SWIPES™ compatible power cable. The Sidehat connector provides 5V, up to 1A, of power for USB or other radio accessories. There are no LED indicators for the operation of this power.

Downloads

Spec Sheet

Contact For Pricing

Compatible with the following batteries & Power Source BA-8180/U, BA-8140/U, ZA-8140S, ZA-8150, IPS HUB, BA-5590/U, BA-5390/U, BA-2590/U, BB-390/U, BB-590/U

EFB P/N: 1-15159-00

UEC: 1009A01-001

NSN: 6130-01-618-5990

DC Input 5 VDC Nominal
Output 1 Amp 5 VDC Maximum
Operational Temperature –20°C to +60°C (–4°F to +140°F)
Storage Temperature –40°C to +100°C (–40°F to +212°F)
Dimensions (WxDxL) 8.42 X 2.85 X 2.64 Centimeters (3.32 x 1.12 x 1.04 Inches)
Weight 64.86 g / 0.143 lb
Environmental -Humidity 95% -Altitude 50,000 ft

Rifleman AN/PRC 154 Charger

Posted on

rfileman

The Rifleman Charger allows the user to maintain up to 80% charge on an Thales Rifleman Radio in a vest or personal equipment mounted package. The charger may be used as part of the Soldier Wearable Integrated Power Equipment System (SWIPES™) system or separately powered using a SWIPES™ compatible power cable.

Downloads
Spec Sheet

Contact For Pricing



Compatible with the following batteries & Power Source
BA-8180/U, BA-8140/U, ZA-8140S, ZA-8150, IPS HUB, BA-5590/U, BA-5390/U, BA-2590/U, BB-390/U, BB-590/U

EFB P/N: 1-15150-00

UEC P/N: 0998A01-003

NSN: 6130-01-618-5791

1-15525-00, SWIPES CWB Battery Cable VERSION II

DC Input 12 VDC Nominal
Output 1 Amp 12.6 VDC Maximum
Operational Temperature –20°C to +60°C (–4°F to +140°F)
Storage Temperature –40°C to +100°C (–40°F to +212°F)
Dimensions (WxDxL) 77 x 35 x 96 cm (3.0 x 1.38 x 3.75 inches)
Weight 142 g / 0.31 lb
Environmental -Humidity 95%
-Altitude 50,000 ft



Motorola AN/PRC 153 Charger

Posted on

motorola

The Motorola Battery Charger Adapter allows the user to maintain up to 80% charge on a Motorola XTS 5000, 3000 or 2500 Radio in a vest or personal equipment mounted package. The charger may be used as part of the Soldier Worn Integrated Power Equipment System (SWIPES™) or separately powered using a SWIPES™ compatible power cable.

Downloads
Spec Sheet

Contact For Pricing

Compatible with the following batteries & Power Source
BA-8180/U, BA-8140/U, ZA-8140S, BA-5590/U, BA-5390/U, BA-2590/U, BB-390/U, BB-590/U, Li-145, CWB-85, CWB-150, SWIPES Power Hub

EFB P/N: 1-15100-00

UEC P/N: 0997A01-002

NSN: 6130-01-622-5377

1-15525-00, SWIPES CWB Battery Cable VERSION IISWIPES SYSTEM - BB-2525U - no aux

DC Input 12 VDC Nominal
DC Output 8.4 VDC Nominal
Operational Temperature –20°C to +60°C (–4°F to +140°F)
Storage Temperature –40°C to +100°C (–40°F to +212°F)
Dimensions (WxDxL) 10 cm x 7.5 cm x 6.5 cm / 3.94″ x  2.95″ x 2.56″ (exclusive of pigtails)
Weight 156 g / 5.5 oz
Environmental -Humidity 95%
-Altitude 50,000 ft



Falcon III AN/PRC 152 Charger

Posted on

DSCN1476

The Falcon III Charger allows the user to maintain up to 80% charge on an Harris Falcon III Radio in a vest or personal equipment mounted package. The charger may be used as part of the SWIPES™ system or separately powered using a SWIPES™ compatible power cable.

Downloads
Spec Sheet

Contact For Pricing

Compatible with the following batteries & Power Source
BA-8180/U, BA-8140/U, ZA-8140S, ZA-8150, IPS HUB, BA-5590/U, BA-5390/U, BA-2590/U, BB-390/U, BB-590/U

UEC P/N: 1045A01-001

EFB P/N: 1-15250-00

NSN: 6130-01-618-5758

1-15525-00, SWIPES CWB Battery Cable VERSION IISWIPES SYSTEM - BB-2525U - no aux

DC Input 12 VDC Nominal
DC Output 13.1 VDC Nominal
Operational Temperature –20°C to +60°C (–4°F to +140°F)
Storage Temperature –40°C to +100°C (–40°F to +212°F)
Dimensions (WxDxL) 9.5 cm x 9 cm x 6 cm / 3.8″ x 3.6″ x 2.4″ (exclusive of pigtails)
Weight 156 g / 5.5 oz
Environmental -Humidity 95%
-Altitude 50,000 ft

Falcon III AN/PRC 152 Charger with Auxiliary Output Cable

Posted on

falcon 152 with aux

The Falcon III AN/PRC 152 with Auxiliary Output Cable Charger allows the user to maintain up to 80% charge on an Harris Falcon III Radio charge a EUD and provides an output to exchange data between an EUD and Radio in a vest or personal equipment mounted package. The charger may be used as part of the SWIPES™ system or separately powered using a SWIPES™ compatible power cable. The Auxiliary Output Cable shall be connected to a Falcon III AN/PRC 152 Sidehat device (P/N 1-15259-00) ONLY.

Downloads
Spec Sheet

Contact For Pricing
Compatible with the following batteries & Power Source
BA-8180/U, BA-8140/U, ZA-8140S, ZA-8150, IPS HUB, BA-5590/U, BA-5390/U, BA-2590/U, BB-390/U, BB-590/U

EFB P/N: 1-15250-XSH

NSN: 5895-01-623-6381

UEC P/N: 1045A01-002

1-15525-00, SWIPES CWB Battery Cable VERSION II



DC Input 12 VDC Nominal
DC Output Charge 12.6 VDC Maximum
DC Output Side Cable 5V DC Nominal
1 A Maximum
Operational Temperature –20°C to +60°C (–4°F to +140°F)
Storage Temperature –40°C to +100°C (–40°F to +212°F)
Dimensions (WxDxL) 7.7 x 3.51 x 9.6 cm (3.0 x 1.38 x 3.75 inches)
Weight 171 g / 0.377 lb
Environmental -Humidity 95%
-Altitude 50,000 ft
***EUD Cable sold seperately***

Falcon III AN/PRC 152 Charger W/ Auxiliary Output Cable and with Falcon Dual Input Dual Output Side Connector (sidePAN)

Posted on

rifleman anprc 154 charger with auxiliary output cable

The Falcon Ill AN/PRC 152 Charger with Auxiliary Output Cable and with Falcon Dual Input Dual Output side collector (sidePAN) allows the user to maintain up to 80%, charge on a Harris Falcon Ill Radio, charge a EUD and provides an output to exchange data between an EUD and Radio in a vest or personal equipment mounted package. The charger may be used as part of the SWIPES™ system or separately powered using a SWIPES™ compatible power cable. Kit comprised of Falcon III Charger and SidePAN Connection.

Downloads
Spec Sheet

Contact For Pricing

UEC P/N: 1045A01-003

NSN: 6130-01-618-5758

EFB P/N: 1-15250-SH

Compatible with the following batteries & Power Source
BA-8180/U, BA-8140/U, ZA-8140S, ZA-8150, IPS HUB, BA-5590/U, BA-5390/U, BA-2590/U, BB-390/U, BB-590/U

1-15525-00, SWIPES CWB Battery Cable VERSION II

DC Input 12 VDC Nominal
DC Output Charge 12.6 VDC Maximum
DC Output Side Cable 5V DC Nominal
1 A Maximum
Operational Temperature –20°C to +60°C (–4°F to +140°F)
Storage Temperature –40°C to +100°C (–40°F to +212°F)
Dimensions (WxDxL) 7.7 x 3.5 x 9.6 cm (3.0 x 1.38 x 3.75 inches)
Weight 133 g / 0.29 lb
Environmental -Humidity 95%
-Altitude 50,000 ft
***EUD Cable sold seperately***



MBITR AN/PRC 148 Charger

Posted on



mbitr anprc 148 chargerThe MBITR Charger allows the user to maintain up to 80% charge on an MBITR or MBITR/ JEM in a vest or personal equipment mounted package. The charger may be used as part of the SWIPES™ system or separately powered using the IPS Power Cable, AM/GF (P/N 1-15500-00)

Downloads
Spec Sheet

Contact For Pricing

Compatible with the following batteries & Power Source
BA-8180/U, BA-8140/U, BA-5590/U, BA-5390/U, BA-2590/U, BB-390/U, BB-590/U, Li-145, CWB-85, CWB-150, SWIPES Power Hub

UEC: 1046A01-001

NSN: 6130-01-618-5763

EFB: 1-15200-00

chargerng

DC Input 12 VDC Nominal
DC Output 13.1 VDC Nominal
Operational Temperature –20°C to +60°C (–4°F to +140°F)
Storage Temperature –40°C to +100°C (–40°F to +212°F)
Dimensions (WxDxL) 77 x 35 x 96 mm / 3 x 1.38 x 3.75 inches
Weight 132 g / 0.29 lbs
Environmental -Humidity 95%
-Altitude 50,000 ft

SWIPES™ Power HUB

Posted on

DSC_0559

The Solider Worn Integrated Power Equipment System (SWIPES™) Power Hub allows the user to connect up to four supported devices to a single power source. Supported devices are currently the Motorola charger, MBITR charger, Rifleman Charger, Falcon III charger DAGR power cable, USB 3-Port Hub, and adapter cable.

Downloads
Spec Sheet

Contact For Pricing

Compatible with the following batteries
BA-8180/U, BA-8140/U, BA-5590/U, BA-5390/U, BA-2590/U, BB-390/U, BB-590/U, CWB-85, CWB-150

UEC P/N: 1021A03-001

NSN: 6150-01-618-5998

EFB P/N: 1-15000-ABC

1-15525-00, SWIPES CWB Battery Cable VERSION IISWIPES SYSTEM - BB-2525U - no aux

DC Input 12 VDC Nominal
DC Output 12 VDC Nominal
Operational Temperature –20°C to +60°C (–4°F to +140°F)
Storage Temperature –40°C to +100°C (–40°F to +212°F)
Dimensions (WxDxL) 10 cm x 6 cm x 1 cm / 3.9″ x 2.4″ x 0.4″ (exclusive of pigtails)
Weight 43 g / 1.52 oz
Environmental -Humidity 95% – Altitude 50,000 ft

SWIPES™ USB 3-PORT HUB w/ POUCH

Posted on July 10, 2015

swipes usb 3 port hub w pouch

The Soldier Worn Integrated Power Equipment System (SWIPES™), USB 3-Port Hub Adapter allows the user to connect up to three supported devices to a single power source. The USB 3-Port Hub Pouch is designed to stow, protect, and camoflage the USB 3-Port Hub.

Downloads
Spec Sheet

Contact For Pricing

Compatible with the following power source
EFB’s Power Hub (P/N 1-15000-ABC)

UEC P/N: 1021A01-001

NSN: 7035-01-618-4938

EFB P/N: 1-15700-XXX

SWIPES SYSTEM - BB-2525U - no aux1-15525-00, SWIPES CWB Battery Cable VERSION II

DC Input 12 VDC Nominal
DC Output 5 VDC Nominal
Operational Temperature –20°C to +60°C (–4°F to +140°F)
Storage Temperature –40°C to +100°C (–40°F to +212°F)
Dimensions (WxDxL) 7 cm x 8 cm x 1.5 cm / 2.75″ x 3.35″ x 0.59″ (exclusive of pigtails)
Weight 78 g / 2.75 oz
Environmental -Humidity 95%
-Altitude 50,000 ft
